Rear Hubs Complete

While waiting for my roll cage tube to arrive (and in between building a new chicken pen) I kept working on the the rear hubs which are now completely assembled and are ready to go back onto the car.

IMAG1838[1]

Complete with new custom made alloy backing plates to keep the rocks out.

Still need to bold on the wheel scrapers, but need to wait until I have the rims before that can be done.

IMAG1840[1]

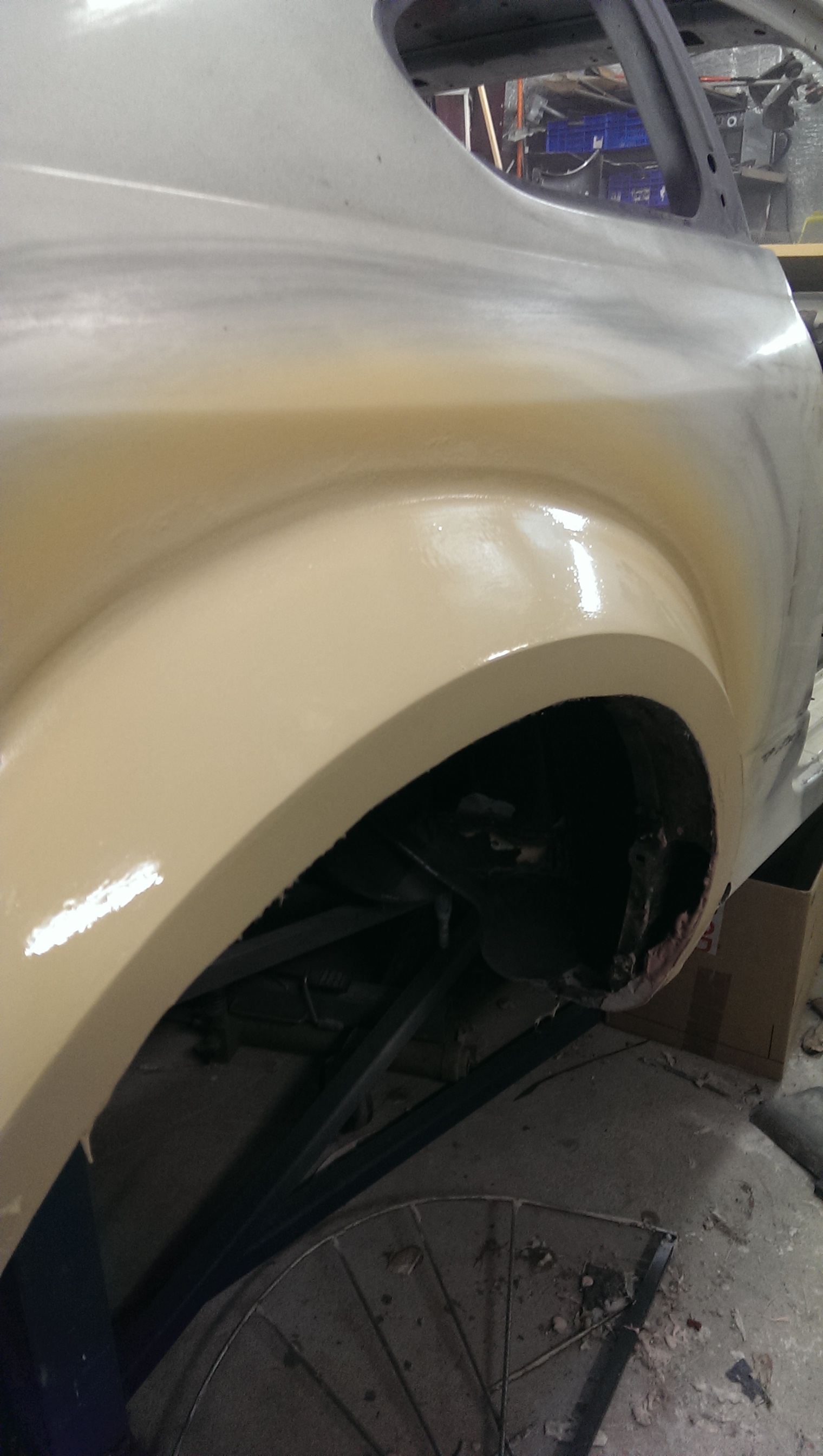

Another layer of primer/filler on the flares – getting there…..

IMAG1841[1]

A few more layers of filler and paint, and I can make a mould of it.  Then, assuming wheel clearances are ok after I cut out the inner fender, I can start work on the other side.

Now that the hubs are done, just need to finish cleaning up the rear subframe and bolt on the suspension arms to check all of the clearances.
