Feeling good, large chunks of progress

While the paint inside the car is dry, I want to leave it to hard a bit more before I do too much inside, so it was time to do some work underneath.

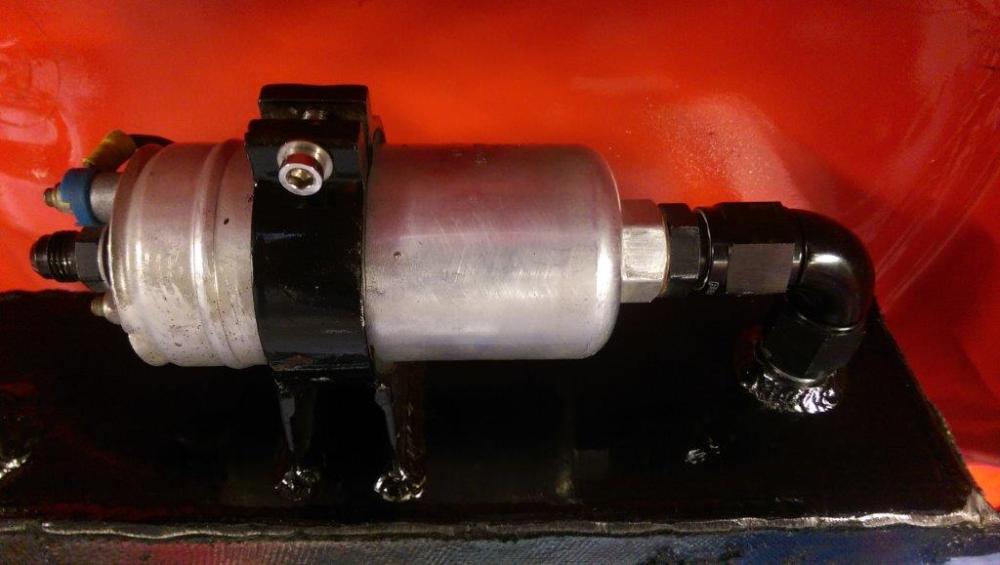

Got the fuel tank in, and fuel pump mounted.

IMAG0674

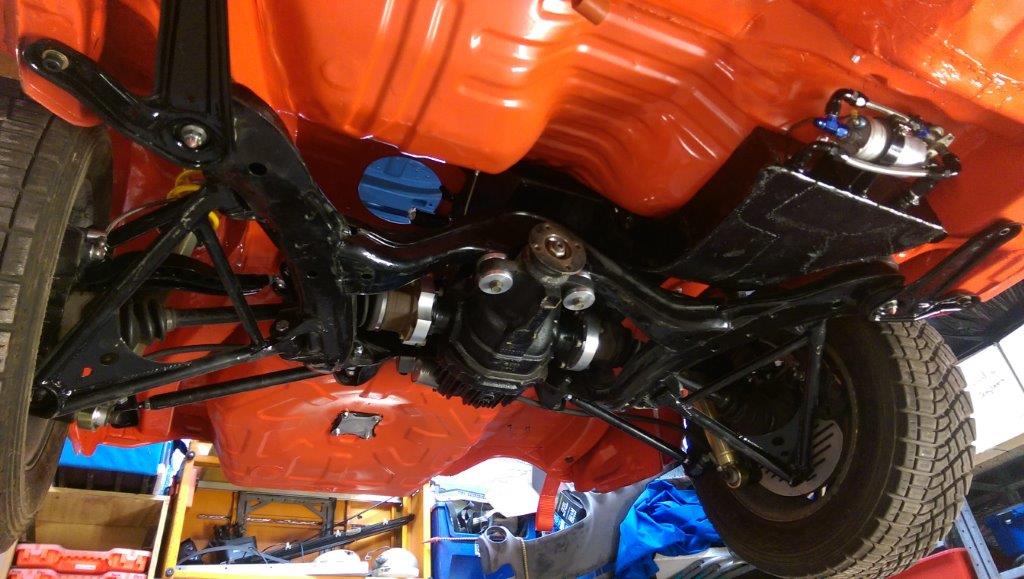

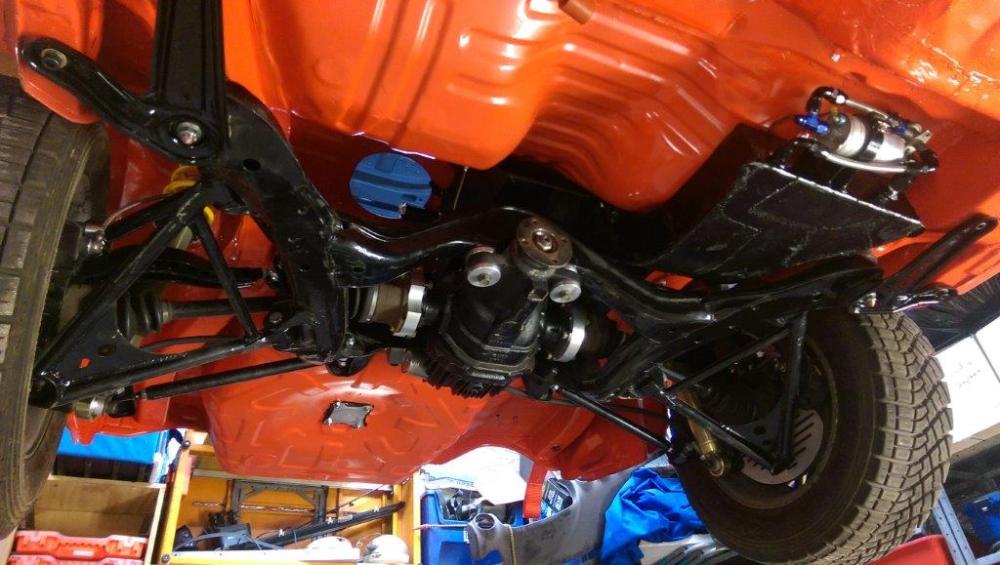

Got the rear subframe all in, shocks mounted, tyres on, fuel pump and regulator plumbing done!

IMAG0683

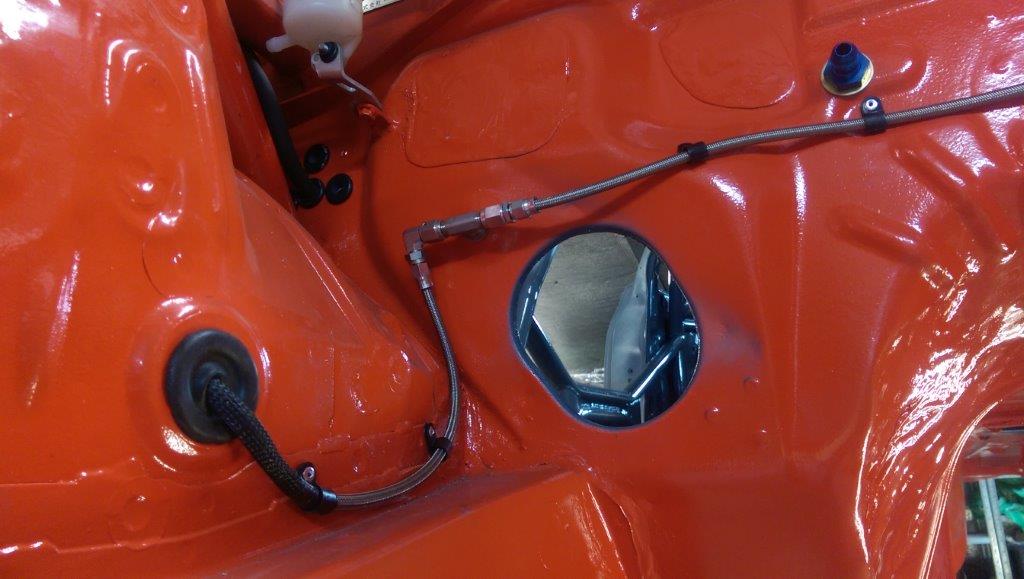

Plumbed the line from the subframe to the car.

IMAG0680

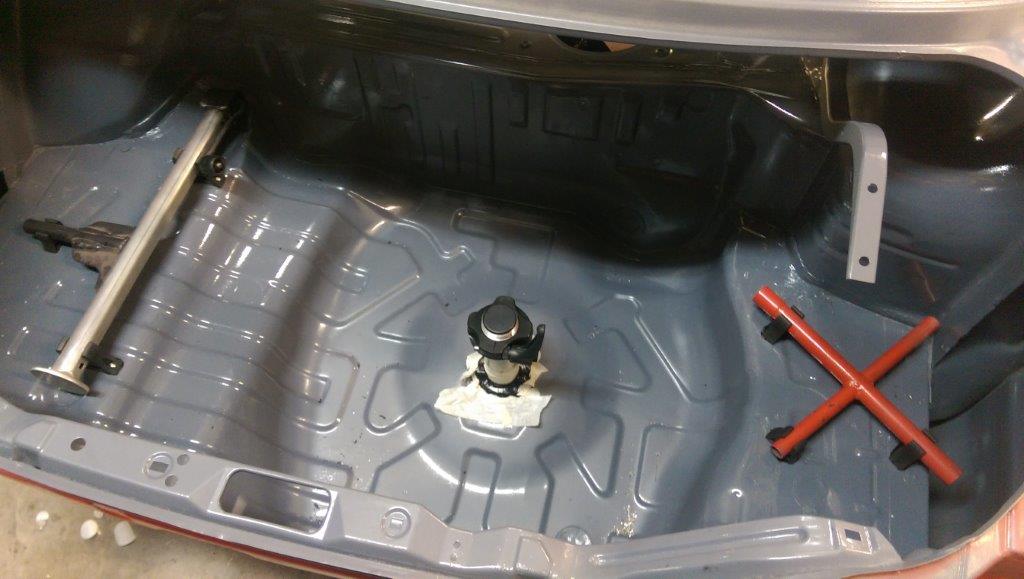

Mounted the jack, wheel brace and spare tyre mount.

IMAG0676

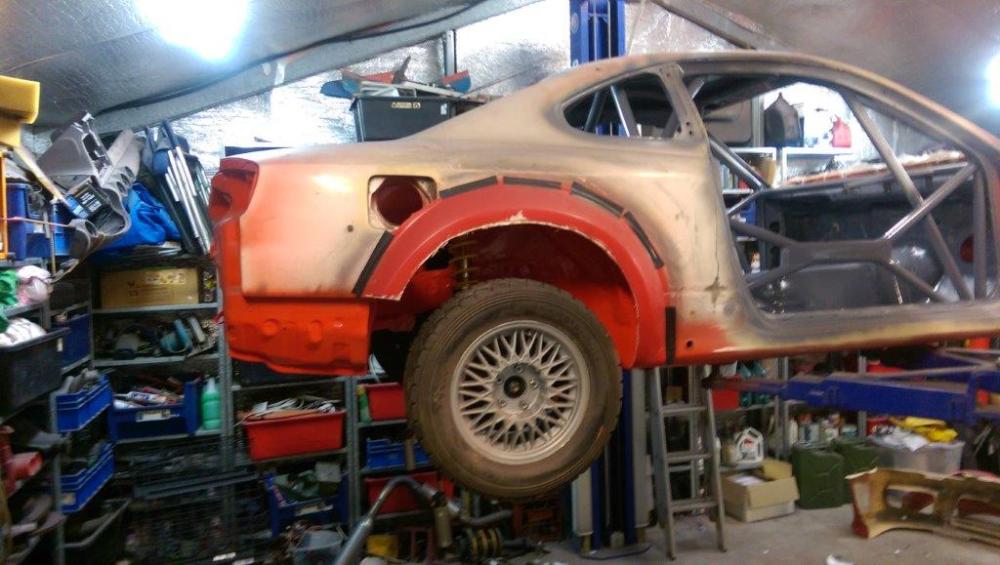

Got droop?

As it turns out, I could have gotten another 30mm of droop out of it before the driveshaft hits the subframe ūüė¶ ¬†Oh well, we¬†will see how it handles, and if I feel that I need it, I’ll get a quote on getting some more out of it when they are over east being serviced in the future. ¬†I already have a lot more travel than the ‘standard’ S15 MCA setup, maybe I’m just being greedy now….

IMAG0675

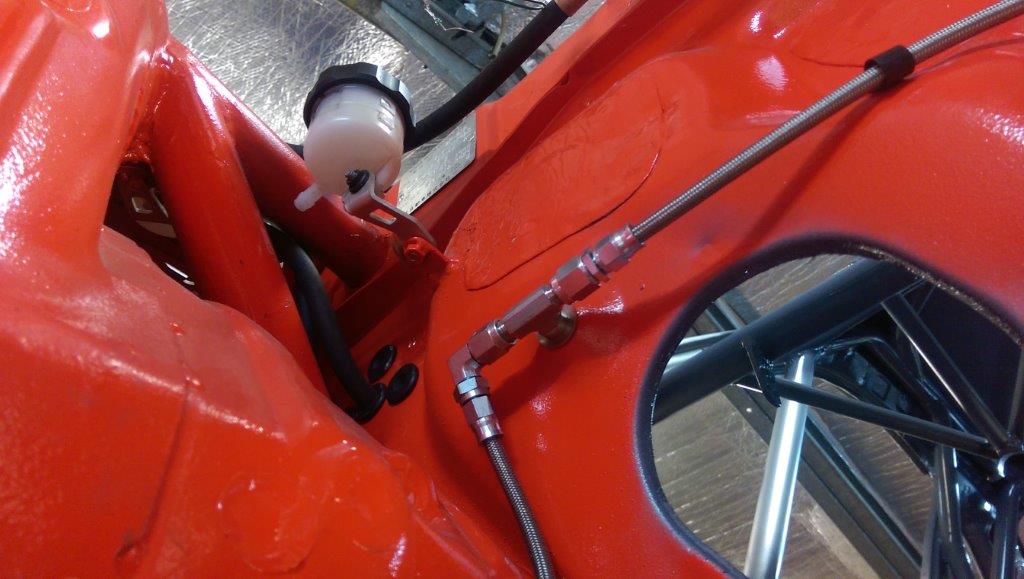

Starting to work on the lines from the fluid reservoirs to the masters.  Will mount the pedals in this weekend! (they are just sitting there right now)

IMAG0679

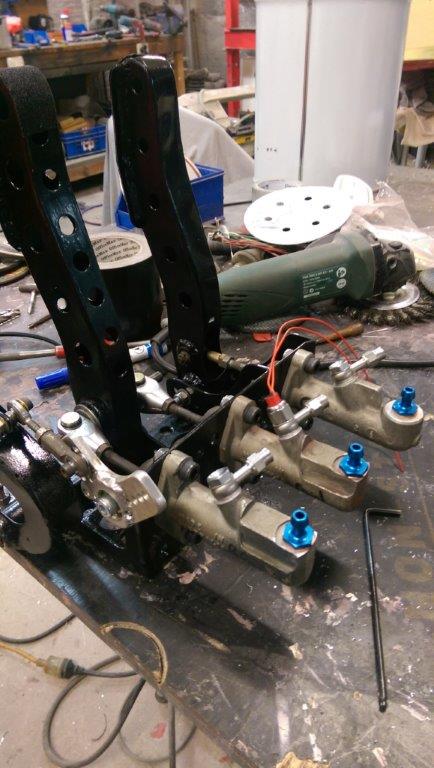

Pedal box re-assembled

The repainted pedal box is all dry, so I put new bearings in all of the pedals, and reassembled it all.

IMAG0661 IMAG0660

As soon as the paint inside the car is completely dry then I can do the brake lines from the pedal box to the rest of the car.

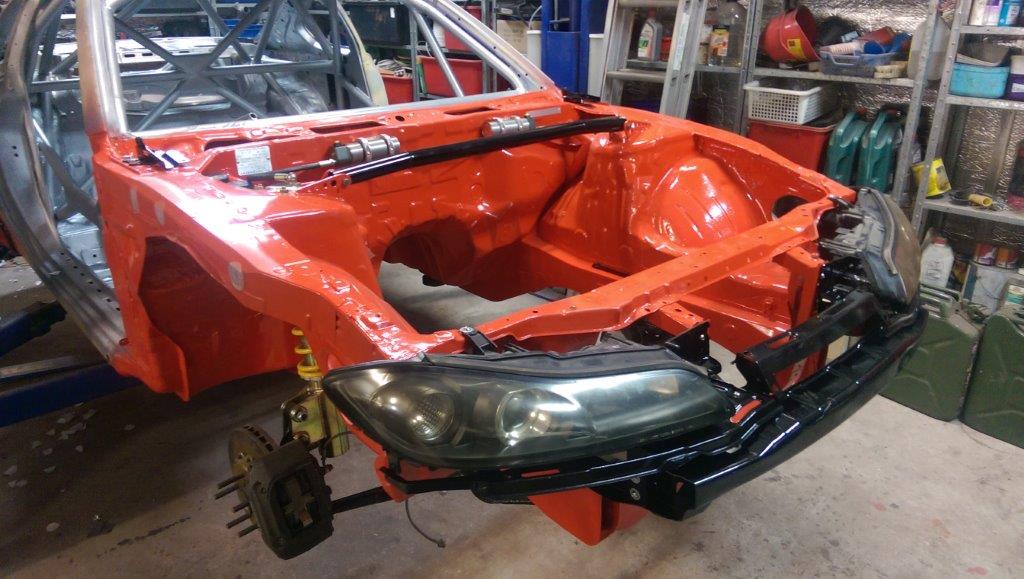

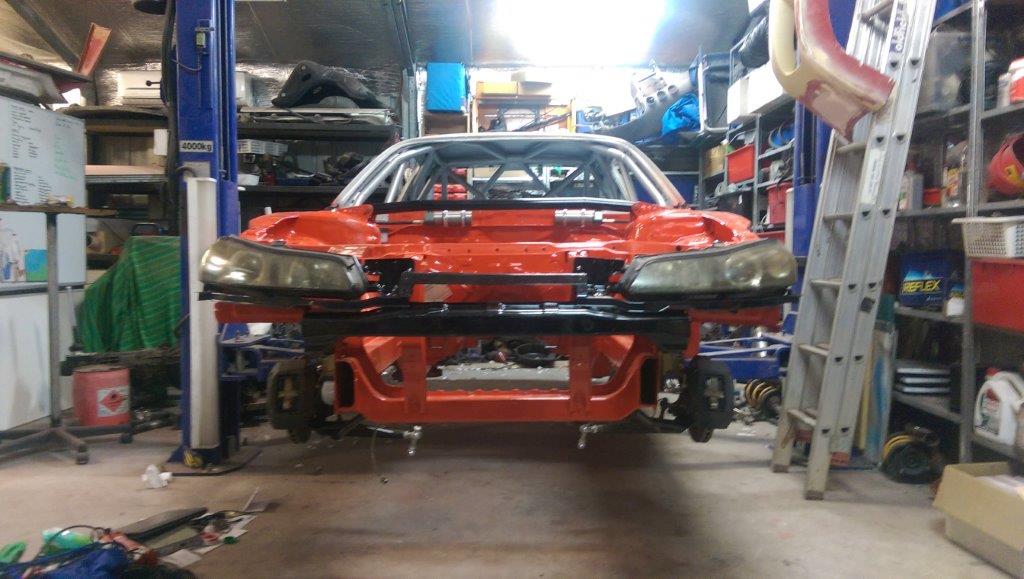

Got some more of the front end parts painted black and assembled on the car.

IMAG0659 IMAG0657

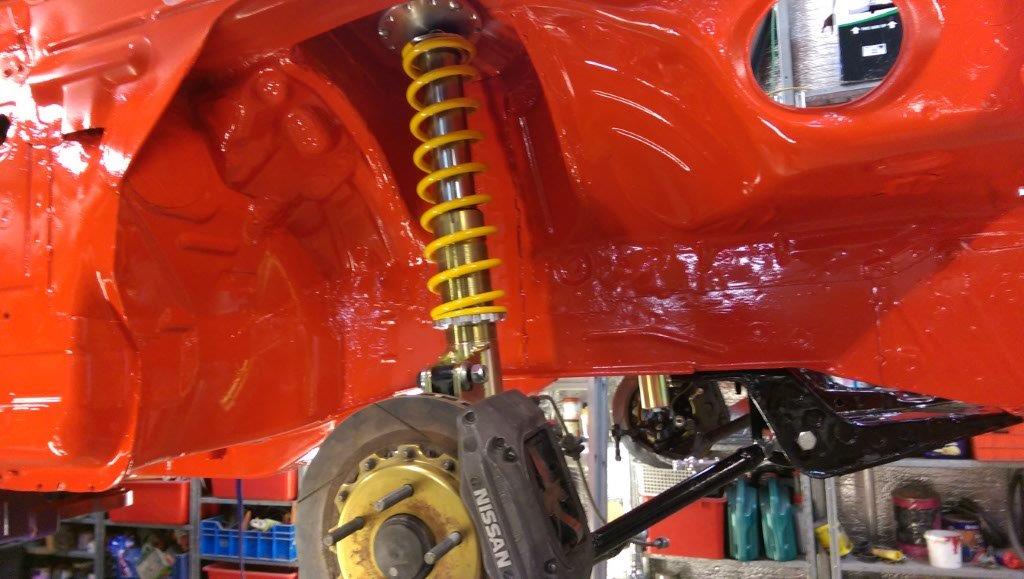

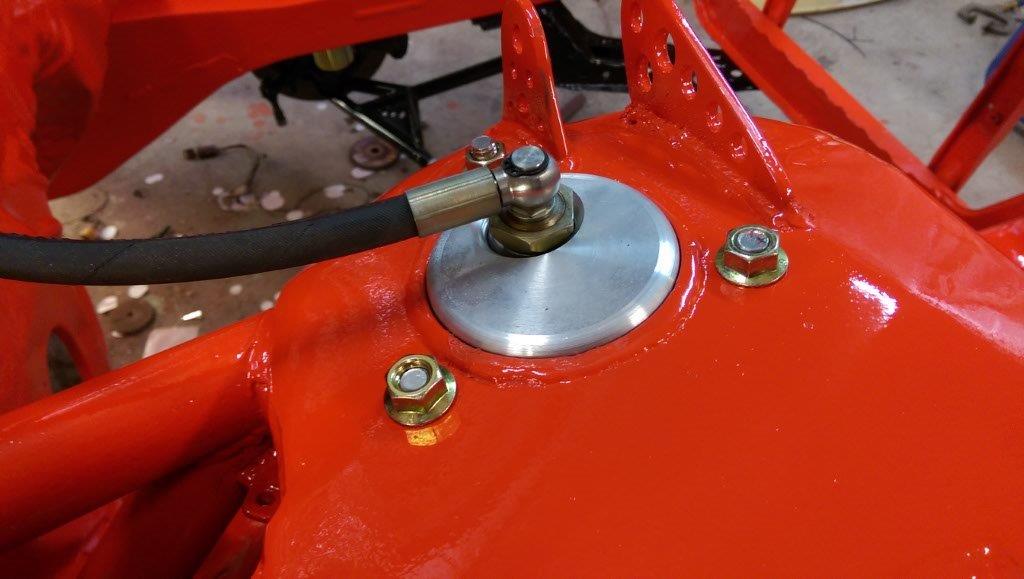

First parts bolted BACK ON!



Its been so long removing things, and pulling everything apart, for the first time something is being bolted back on for the final time!

IMAG0614 IMAG0616 IMAG0620 IMAG0621



Gave the wing a covering with undercoat, now to sand it all off again to make it all smooth…..

IMAG0632



Made up a little mount for the external canisters for the suspension, and started mounting the brake fluid reservoirs.

IMAG0647

Electricity and paint

Started work on the alternator mount.  Just need to get a belt this week then I can keep going on this.

IMAG0567

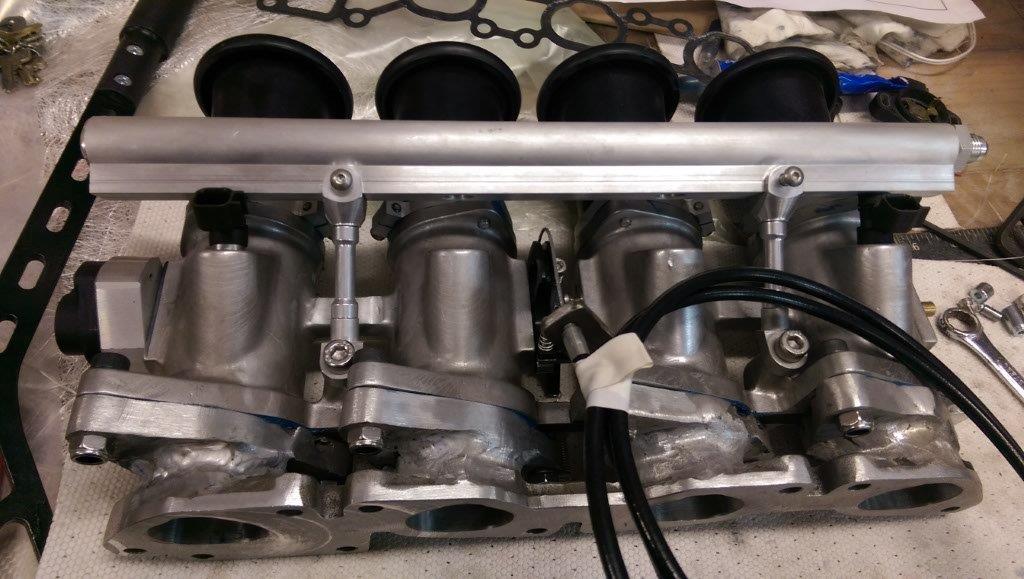

Throttle cable arrived, so I setup the throttle bodies on the manifold, cable holder etc.

IMAG0571

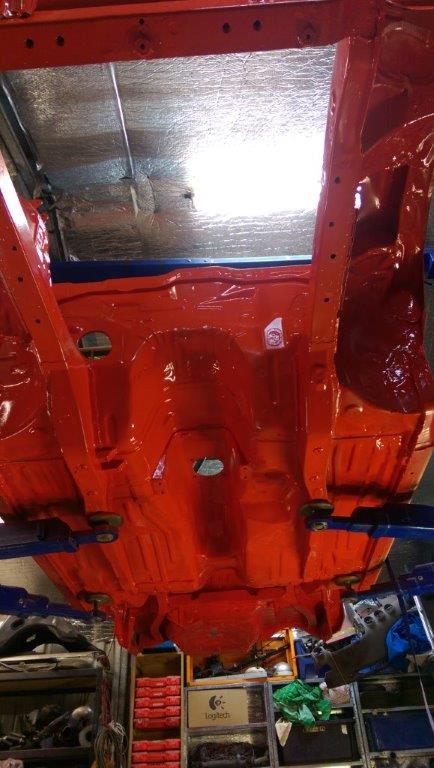

Then did the second and final coat on the underbody!  The flash in the pics make it look orangy, its more red in real life.

IMAG0610



All of the underneath is now 100% complete!

IMAG0612
