Month: October 2015

Electrical again, and Engine Ancillaries

More wiring again, plus starting to get some of the other parts bolted to the engine, so that I can get one step closer to starting it!


Once of the first items is the coolant header tank




Got the injectors in, and the last fuel line made up.

IMAG0754IMAG0751



Throttle cable in




Breather hoses in, ready to start making up the catch tank.




And more wiring…..




Electrical

Most of the weekend was spent doing electrical lots of time but not a lot of visible progress…




The battery is all mounted securely.

IMAG0729

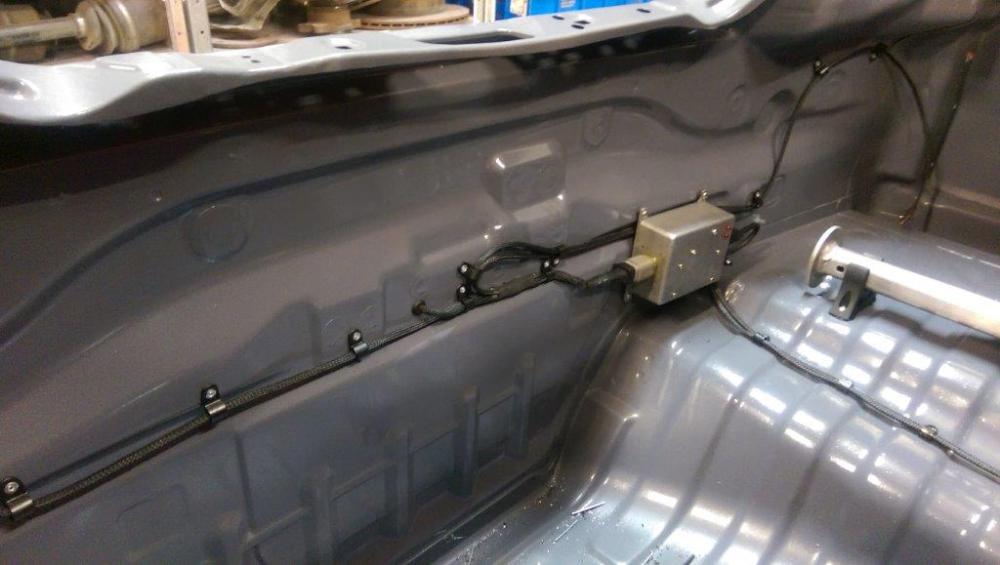

Most of the rear end wiring to the lights is complete.IMAG0730

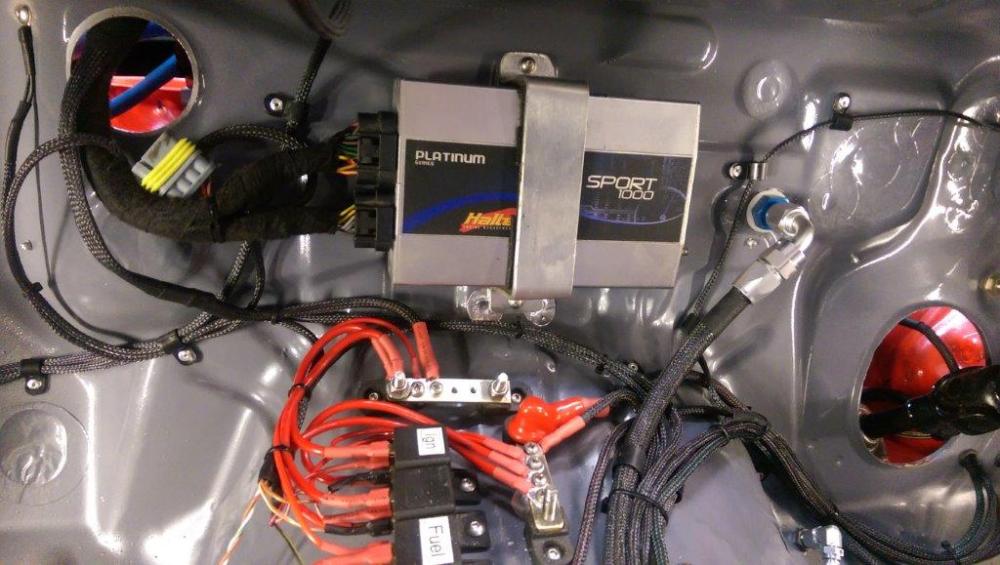

The centre console, starter, ignition etc is all done.

IMAG0737

Another good step forward

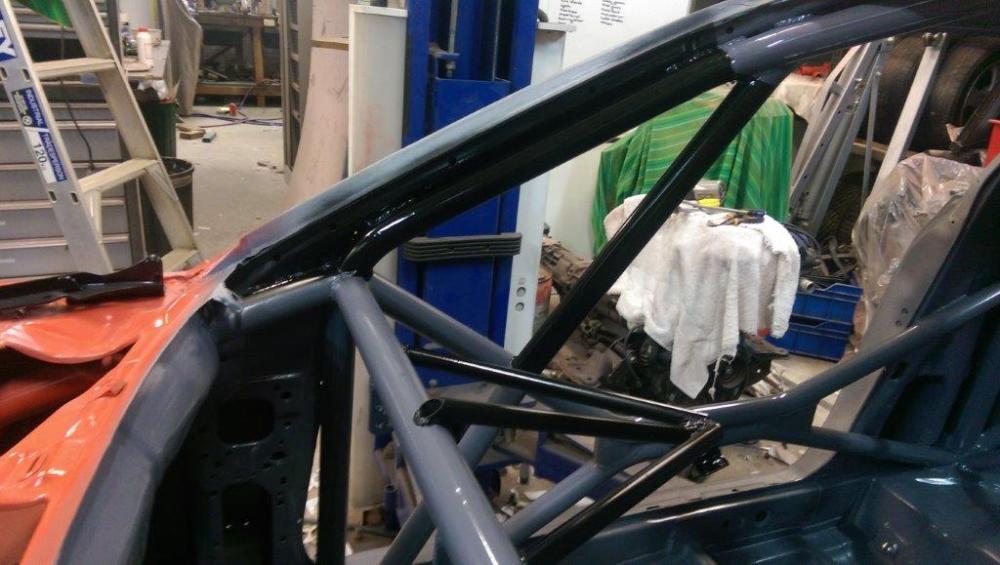

First job of the weekend was on Friday night, putting some flat black paint on the A pilar and Carlos bar, helps to make them ‘disappear’ when you are looking out through the front window.

IMAG0688

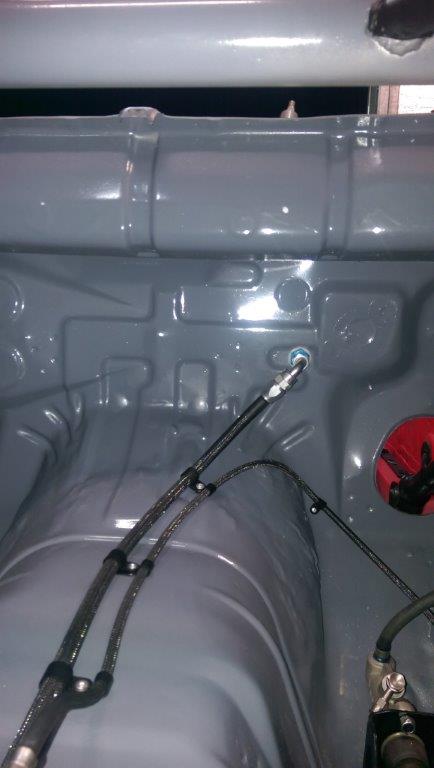

On Saturday, once the paint had dried it was time to get inside and start getting all of the brake and fuel lines done.

IMAG0696

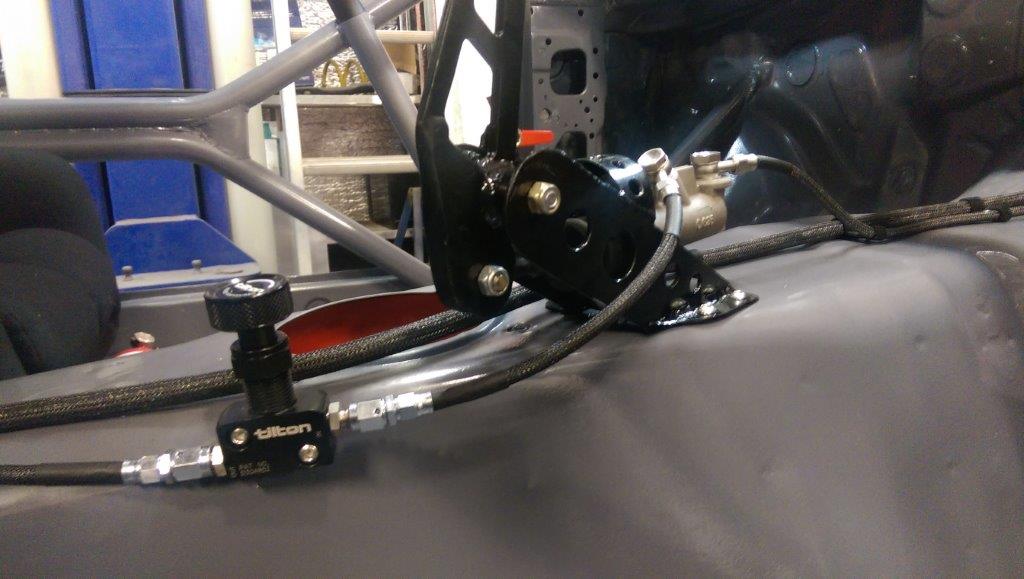

Got the handbrake mounted, rear split valve in place.IMAG0699


Pedals all mounted and plumbed in.

IMAG0693

CoDrivers seat and belts all in.

IMAG0691

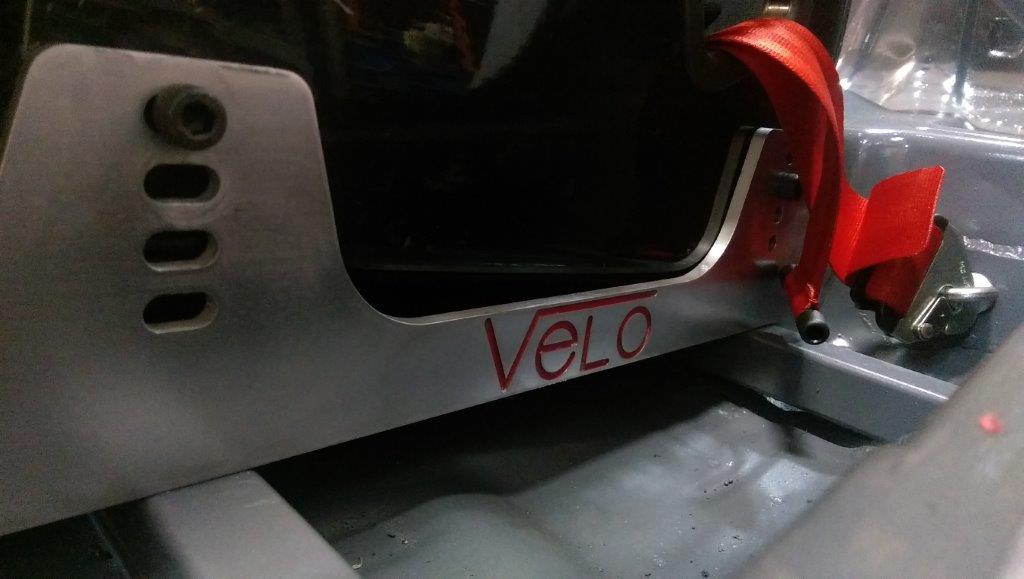

A bit of colour coding to the Velo logo, just because….IMAG0702

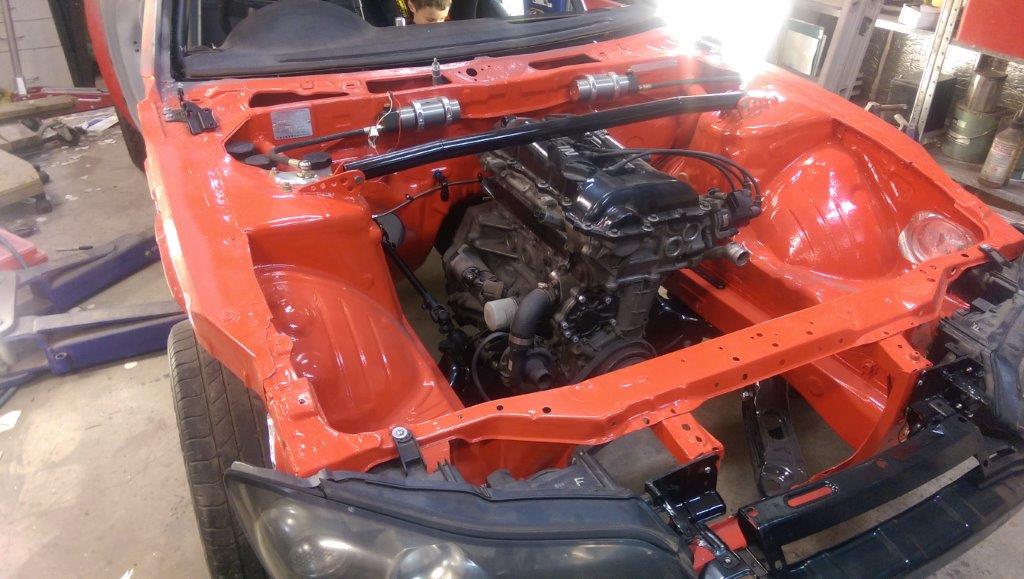

Engine, gearbox and front cross member all in, front suspension all attached.

IMAG0710

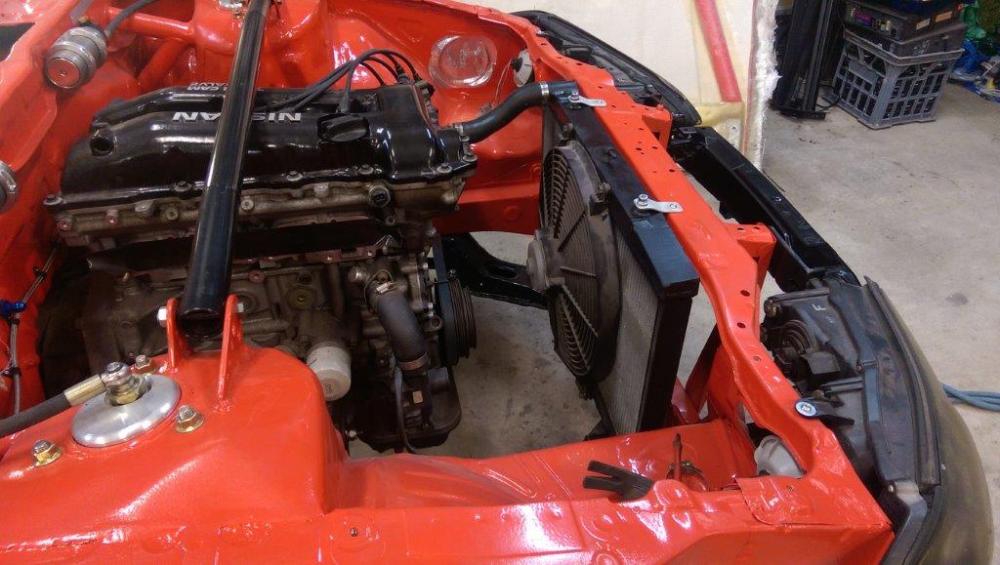

New top and bottom radiator mounts made, rad repainted and fan fitted.IMAG0716

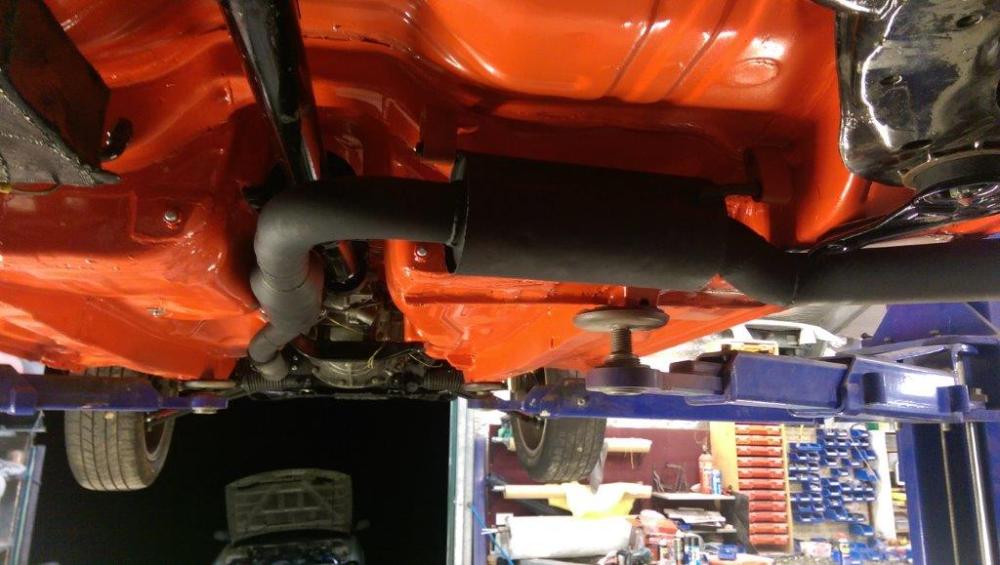

Tailshaft and exhaust painted and mounted.

IMAG0717 IMAG0718

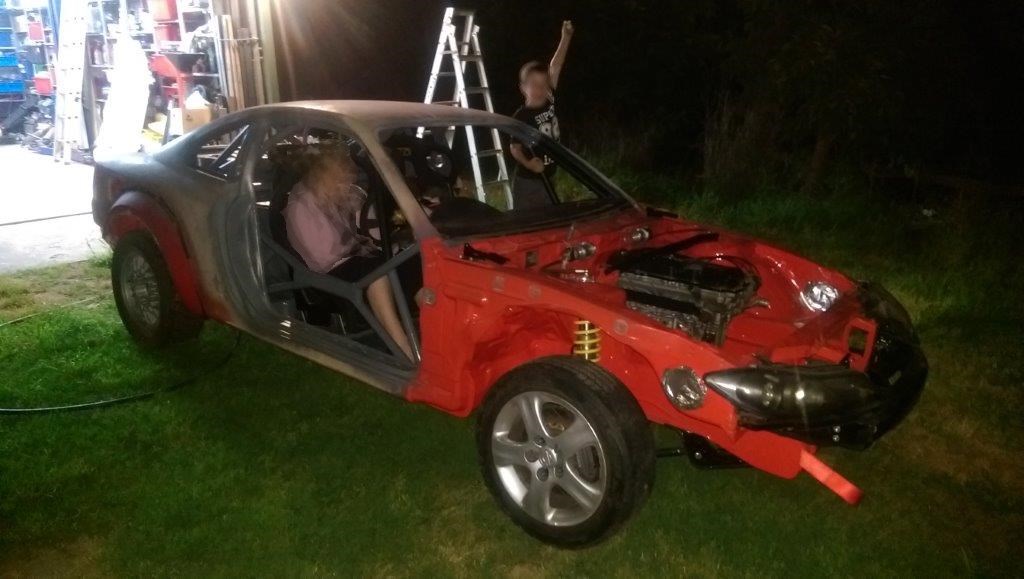

And on its own feet for the first time since the stock, crashed shell was pushed into the shed 2 years ago!IMAG0714


Now all I have to do is paint it, make the wiring loom, fit all of the other interior bits like dash, ECU, map light, trip computer, intercom, medical kit, triangles, cage padding, battery mount, foot rests for both sides, sump gaurd, get the engine tuned get it CAMS log booked, road licensed, etc, etc etc…..  I’ve got a month, so……….  :/

145

Yeap, a total of 145hp at the tyres.  Considering its a totally stock 2L motor with some bolt ons that’s a healthy figure.  Sure, its a long way short of the 200+ that I want once I build a motor, but a great start for now 🙂

Massive thanks to Shannon at TuneCorp for getting me the last few sensors that I needed, and for the awesome work tuning the car.
