More front suspension arms and more odds and ends

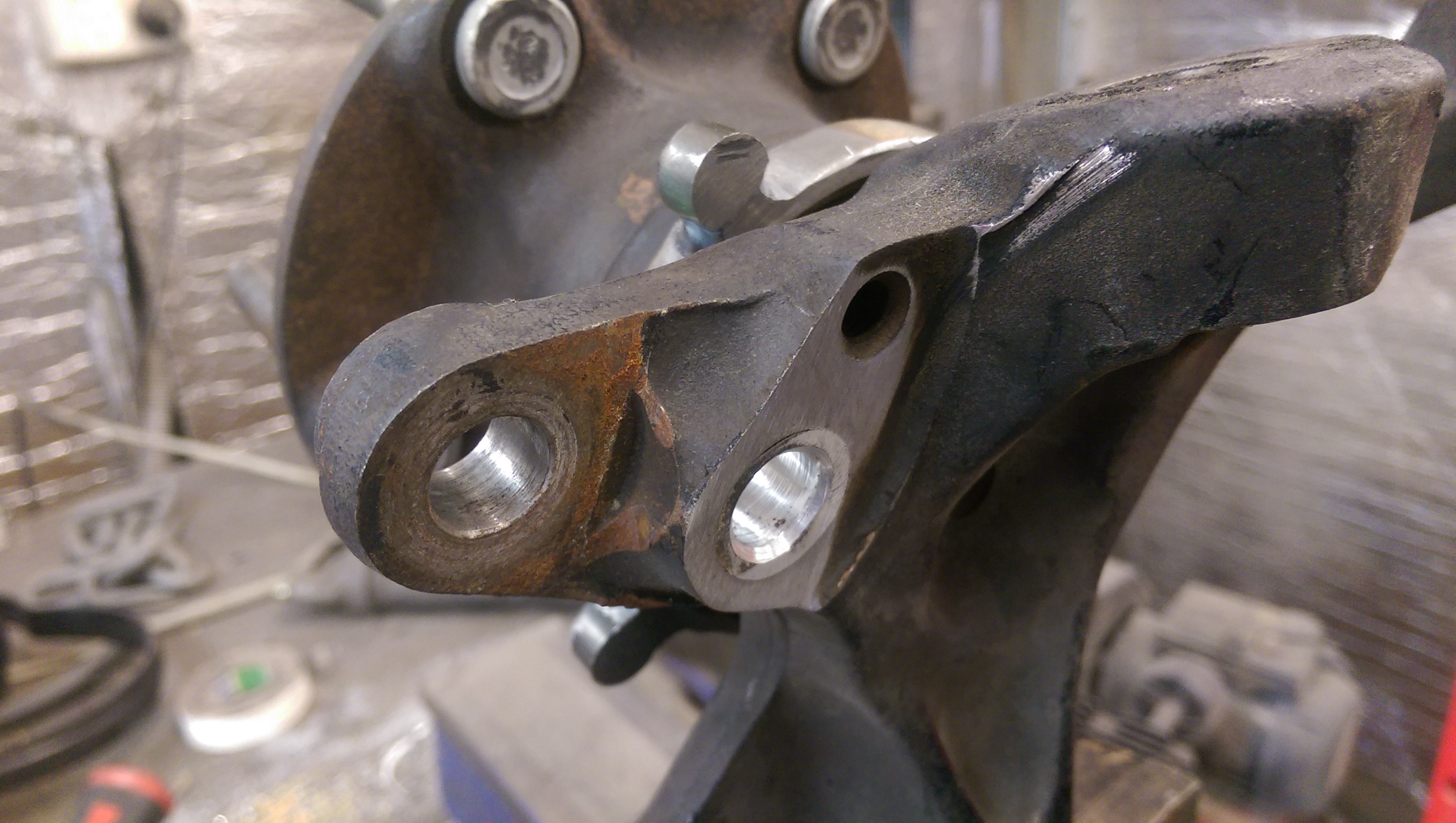

Added the steering lock stops and the sway bar mounts to the front lower control arms.  Then made a mirror image of it for the other side.

Made a press in sleeve to adapt the ABS mounting hole to suit the Monit rally computer wheel probe.

Also took the stock ABS ring and welded some larger rings on it, so that the Monit has something to pick up a signal from.

IMAG0398

Started working on the mounts for the wheel brace and jack.

IMAG0399

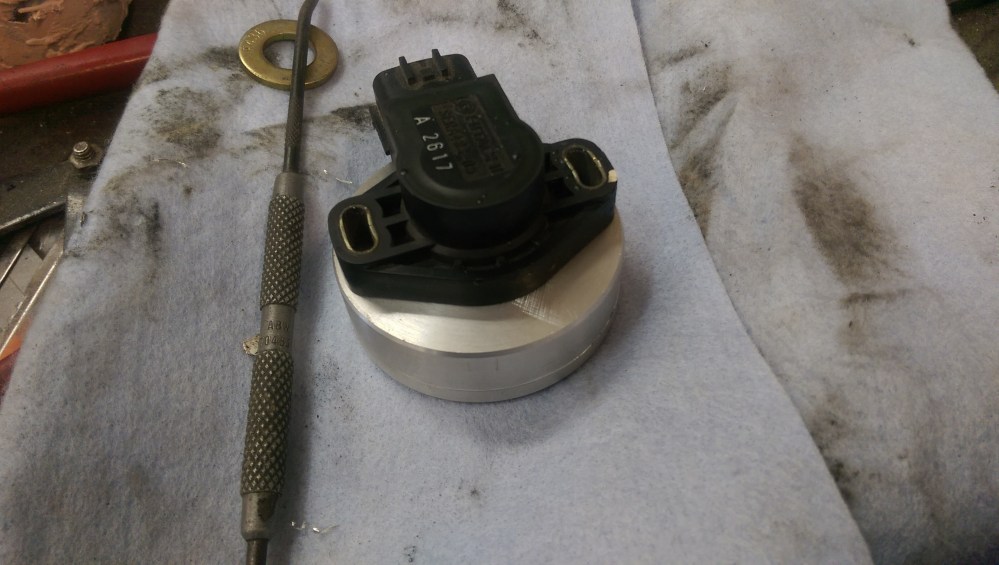

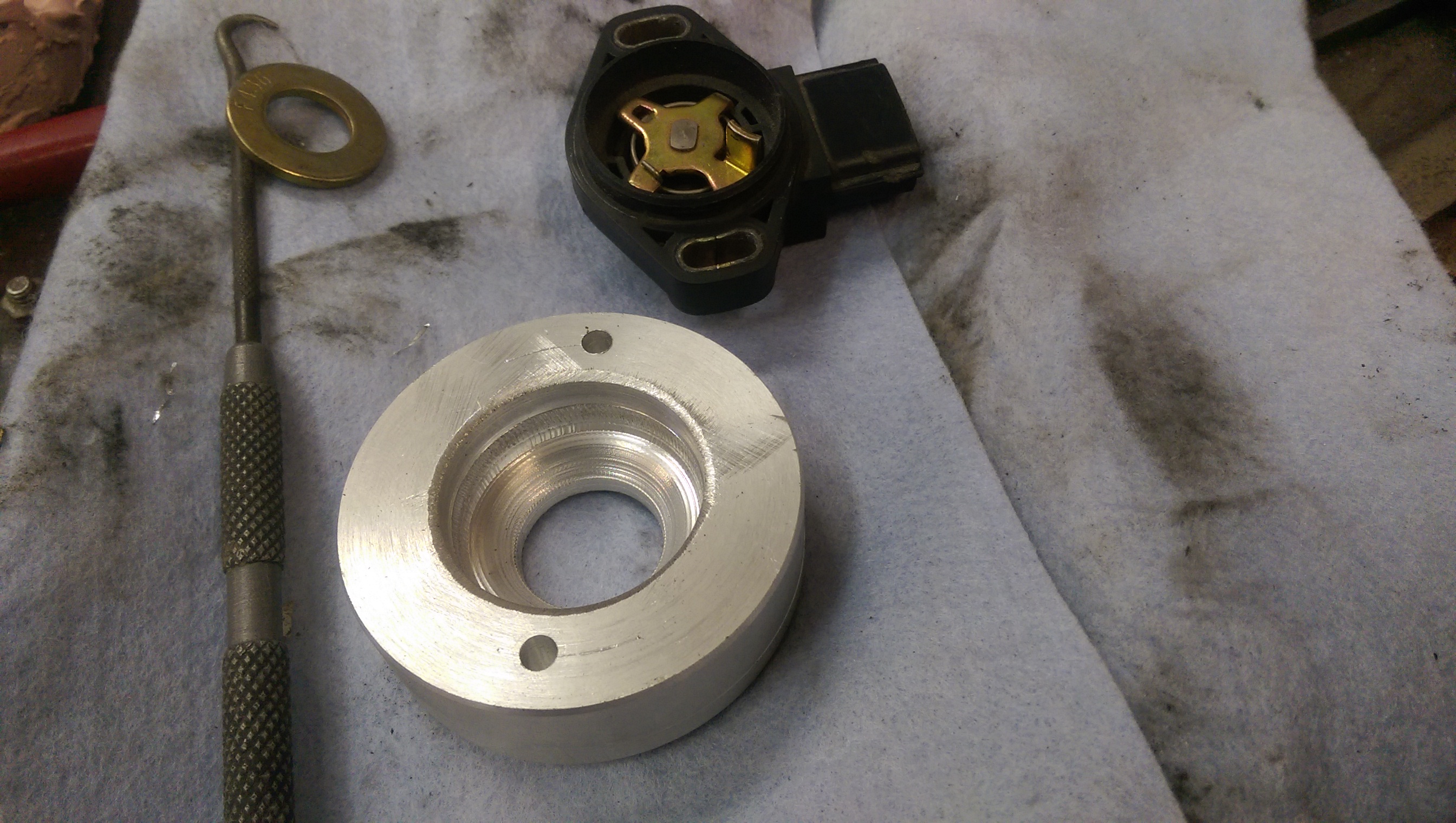

Ans the very raw beginnings of an adaptor to mount my TPS sensor to the quad throttle bodies.IMAG0400 IMAG0401
