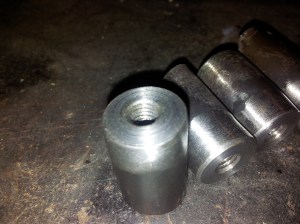

In the last post I talked about some of the little bits that I made, so here they are completed and ready to weld onto the car.
So here you can see how the bolts will attached from the bottom. This bolt will go though the bumper and screw into this little spud. This is then attached to one of the tubes that make up the car.
Photos of them on the car and finished:

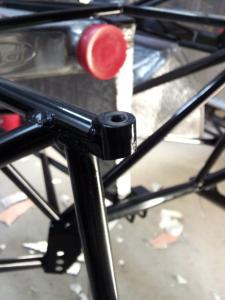

In the first pic, the spud is the bit at the top, fairly easy to see. These ones will hold the corner of the front 1/4 panel.
In the second pic, its at the bottom of the bars that are heading down and to the front of the car. These ones will hold the bottom of the bumper and the floor.
